Physical Geology - Answer Sheet - Test 3 : Face-to-Face Section

QuestionAnswerComments
# 1DThe oceanic crust consists primarily of the igneous rock basalt.
# 2Alateral offset is a characteristic of strike slip faults - the movement is parallel to the strike of the fault
# 3BElastic deformation is recoverable once the stress is relaxed
# 4BBrittle failure occurs while the substance is undergoing elastic deformation
# 5CRecumbent folds are effectively lying on their side - the axial plane is horizontal
# 6BThe oldest beds in an anticline are exposed at the core of the structure - as you go from the core to the limbs the rocks get younger.
# 7DAll of these answers apply to the conditions or places where grabens (valleys) and horsts (uplifted blocks) can form
#8CRelative Dating requires that events be ranked from oldest to youngest
# 9Bin a symmetrical anticline the beds dip equally away from the core of the structure
# 10BNote that the beds dip towards the core of the structure - a syncline and the dips are unequal on opposites sides - asymmetrical
# 11AThe youngest rocks in a syncline are in the core of the structure - therefore if unit B is Silurian in age, unit C must be younger than Silurian - the Devonian is younger than the Silurian and the others are older.
# 12ASome of these features are produced under compression and others formed under tension - rocks formed under tension (at a divergent margin) may later be put under compression (subduction) ....
# 13BThe dip of the fault plane is the difference between reverse and thrust faults - the sense of motion is the same for both
# 14ATherefore, the normal faults forming the graben must be younger than the folding event and normal faults form under tension
# 15DThe Cambrian, Devonian and Permian Periods are part of the Paleozoic Era. The Cretaceous is part of the Mesozoic
# 16BFolding takes place under compression and divergent margins are under tension
# 17EAll of these statements apply to Primary waves
# 18CS waves travel at a lower velocity than P waves (in the same material) but a liquid can not support the passage of an S wave
# 19A The Mercalli scale relies on obtaining information about the severity of damage or the sensations felt by those who were present
# 20CDinosaurs became extinct at the end of the Cretaceous - about 65 million years age
# 21CEnergy is released at the focus of an earthquake
# 22BThe Epicenter is the point on the surface closest to the focus
# 23BA scarp is created initially on the upthrown side of the fault
# 24AThe hanging wall moved down relative to the footwall moving up - a normal fault by definition
# 25AA record of a single event would begin with the arrival of a P wave which has the highest velocity, then the arrival of the S wave and finallly the arrival of the surface waves.
# 26Bthe generated longshore drift will deposit sediment at B.
# 27BS waves are propagated by displacements perpendicular to the direction of wave travel. Liquids will not support this kind of wave.
# 28DWhen a fault occurs energy is released - body waves form and travel away from the focus in all directions.
# 29CThe bulk modulus measures how a substance resists changes in its volume - materials differ in how compressible they are.
# 30BLiquids do not resist a change in their shape - liquids will not support the transmission of S waves.
# 31DThe shear modulus of the liquid is 0.0. The shear modulus is part of the numerator of the expression for the velocity of a P wave. The P wave would slow down
# 32CThe numerator of the expression for the velocity of an S wave is the Shear Modulus - if the shear modulus goes to zero, the S wave will not be present.
# 33AP waves and S waves are generated at the focus of an event. P waves travel with a higher veolocity than S waves so the longer the time for travel, the greater the difference between the arrival times.
# 34BEach "step" on the Richter scale has an order of magnitude difference (power of 10). A magnitude 7 event is 10 times that of a magnitude 6.
# 35BPlates slide past one another at a transform boundary
# 36EAll of these features form under compression.
# 37AThe P wave shadow zone is caused by a reduction in veolocity when the P wave enters the liquid outer core. The S wave shadow zone is caused by the reduction to 0.0 when the S wave path enters the liquid outer core.
# 38DThe Moho separates the rocks of the crust from those in the mantle. The boundary between lithosphere and asthenosphere separates a rigid from a weak, plastic, partially molten layer.
# 39CCurrents generated in the outer, liquid iron-nickel core, while the Earth rotates, are thought to be responsible for the Earth's magnetic field. The Earth cannot have a dipole magnet because the magnet would loose its magnetic character when temperatures exceed its Curie point.
# 40CNatural magnets - magnetite - loose their magnetic character at temperatures about about 600 degrees C - about 20 kilometers beneath the surface of the Earth.
# 41BIn periods of normal polarity the magnetic north pole is in the Northern Hemisphere - and vice versa.
# 42AWhen sea floor spreading is fast (10 or so cm per year) the magnetic strip is wider than it would be during slow (5 or so cm per year) spreading
# 43D basalts and gabbros form at divergent margins and comprise the oceanic crust
# 44EIsland arcs (such as the Aleutian Islands) form where one piece of oceanic crust subducts beneath another
# 45Bgravitational attraction is a function of the masses between the instrument and the center of the Earth and the distance between the instrument and the center of the Earth. If an area is underlain by denser material, the gravity anomaly will be greater.
# 46AAn ophiolite is an old piece of sea floor.
# 47Eshallow focus earthquakes would be expected at all of these boundaries.
# 48Athis is a divergent boundary - spreading center
# 49Bthis is a transform - fault - boundary
# 50Ca convergent boundary

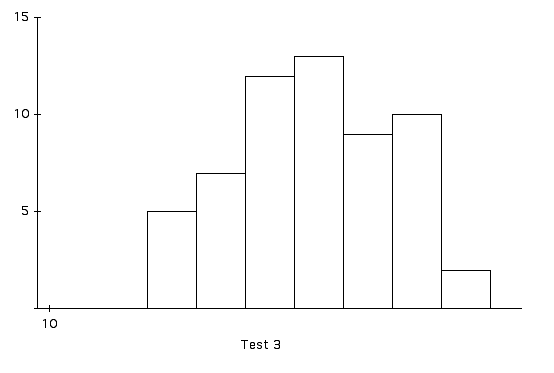

Distribution of Grades on Exam III

The average grade was 63% (as compared with 62% for Exams I and II


See the Grade Book to learn your total number of points earned in the course.

Final Grade Distribution

GradeRange of Total Points
A470 or higher
B410 to 469
C335 to 409
D280 to 334
F279 and below

Remember that you may elect to take the optional finat on December 12, 2000 at 8:30 AM in room 116 SR I. If you take the optional final that score will replace the lowest score you earned on one of the three in-class exams.
